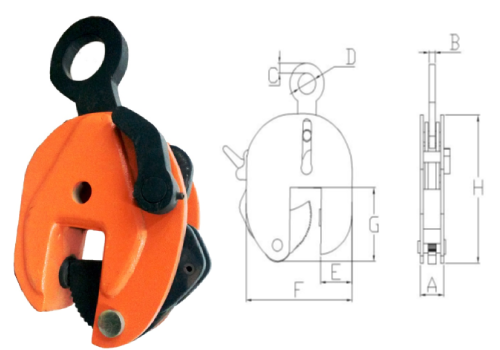

Vertical Plate Lifting Clamp with Lever Lock

Available in capacities of 1, 2, 3, 5, 8, 10 and 12 ton. Jaw opening ranges from 0 to 90 mm. Material is M.S and high strength steel wherever required. Individual clamp is proof tested with 2 times the WLL and manufactured by an ISO 9001 facility. Maintenance replacement kits are available.

Weight of plate to lift.
Hardness of plate to lift.
Type of material to lift.
Position of plate to lift.

DO NOT side load clamp more than 15°C.
DO NOT lift plates with a temperature of 120°C.

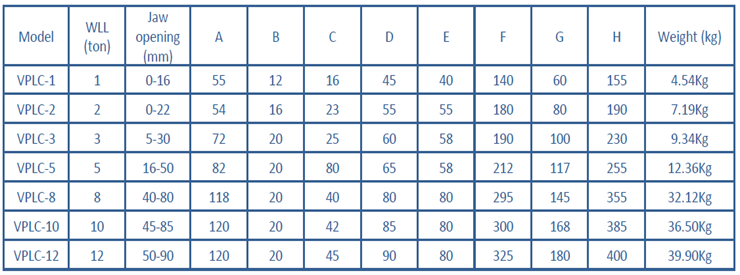

Vertical Plate Clamp With Lever Lock Chart

Vertical Plate Lifting Clamp with Lever Lock

Things to Remember

Dont’s
