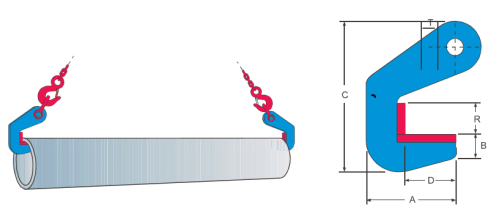

Polyurethane Coated Pipe Clamps


Polyurethane Coated Pipe Clamps

Polyurethane Coated Pipe Clamps

  • For horizontal and transporting of coated pipes.
  • Compact shape and relatively low self-weight with a high lifting capacity.
  • Special Polyurethane coating on clamps to protect damage on coated pipes.
  • Always to be used in pairs.
  • Coating thickness up to 4 mm on body of clamps.
  • Coating thickness more than 10 mm on contact area.

Coating Specification

  • Polyurethane Elastomer approx. 80 shore A.
  • 500% Stretch Capacity 20 N/mm (Din 53 515).
  • Abrasion 60 mg ( Din 53 515).
  • High resistant to abrasion.
  • Exteme cut resistant.
  • Good chemical resistant.
  • No Aging.
  • Better than rubber coating.

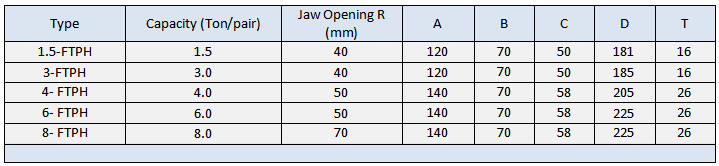

Polyurethane Coated Pipe Clamps Table
