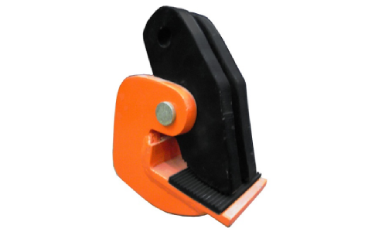

Double Arm with Teeth Plate Lifting Clamp



Double arm with teeth plate lifting clamp is used for heavy plates lifting. Horizontal clamps are made with medium carbon steel of high strength. Extra hard material is used wherever required. Individual clamp is proof tested with 2 times the load of working load limit. Maintenance replacements parts are available.

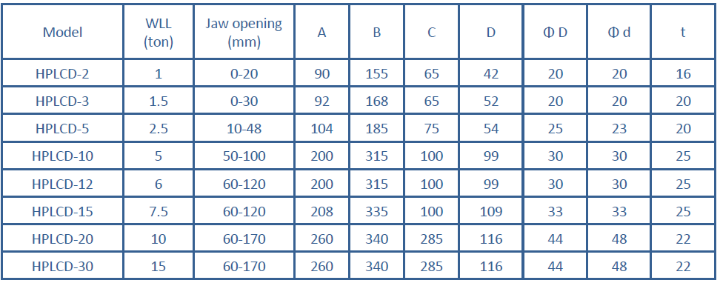

  • Available in capacities of 2,3,5,10,12,15 & 20 metric tons pair wise.
  • Available jaw opening from (0 -170) mm for different sizes.
  • Individual clamp is proof tested with 2 times the load of working load limit.

Dont’s

  • DO NOT use single clamp.
  • DO NOT exceed 60°C angle when lifting.
