Polyester Round Slings

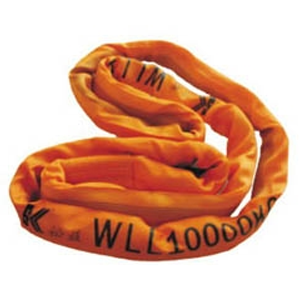

Round Endless Slings

Round Endless Slings
Round Endless Slings1
Round Endless Slings2

Features :

  • Soft, Supple & light weight, easy to handle.
  • The most flexible sling available conforms to the load extremely well and provides choker hold.
  • Being endless, wears evenly as load & hook contact points can be continually rotated to extend sling life.
  • Load bearing fibers never come in contact with the load.
  • Seamless cover, no edge to wear out.
  • Cover abrasion will not reduce the capacity.
  • Adapts to all sizes, types and load configurations.
  • Lightweight, easy to rig, store & clean.
  • Colour coded for easy identification.
  • Available in safety factor 7:1 and 5:1.
  • Free overload tail indicator yarn and optical fiber.

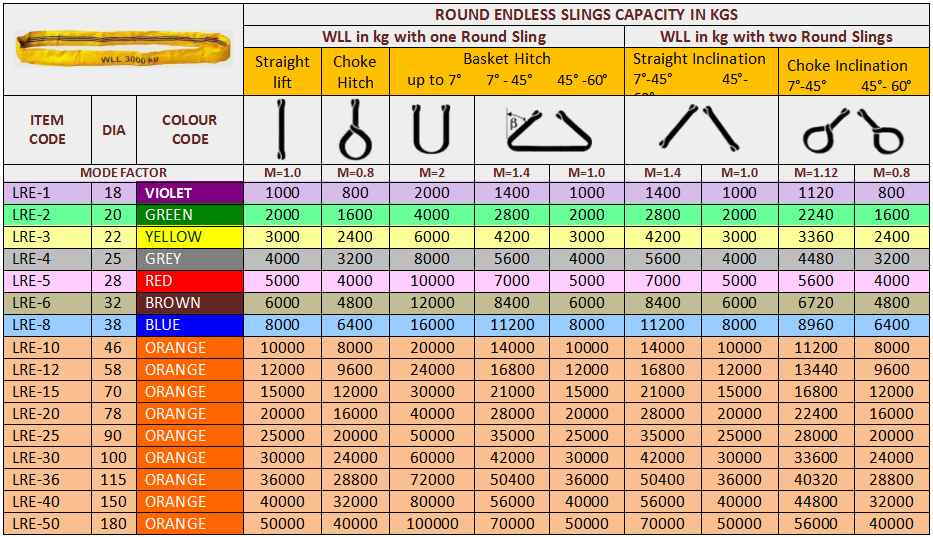

Round Endless Slings Table

Round Endless Slings3

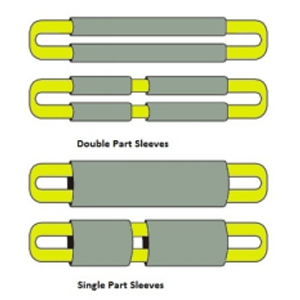

To protect the round slings from cut while using on sharp edges Anti-Abrasive and Anti-cut sleeves must be used. There are basically 2 types of sleeves available for round slings.
1. Movable type sleeves- slide freely on sling but cannot be removed.
2. Quick Sleeve – Slide freely on sling and removable have Velcro.
All these slings are available in different types of material i.e. Polyester, Kevlar, High Molecular Polyethylene (HMPE), Polyester with PU impregnated, Polyurethane blended Polymer and Polyurethane.

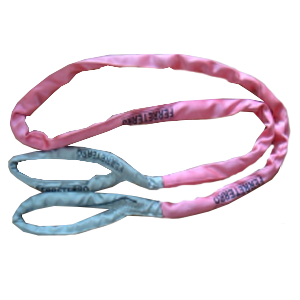

Round Eye And Eye Slings

Round Eye And Eye Slings

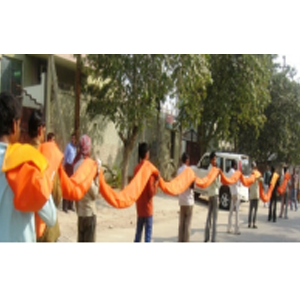

Round Eye And Eye Slings1

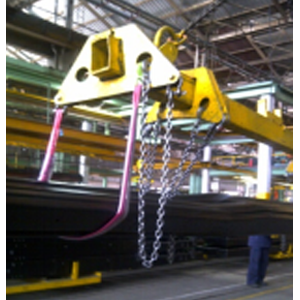

Round Eye And Eye Slings2

Features :

  • Soft, Supple & light weight, easy to use.
  • Super flexible, conforms to shape of load, flattened and lift the load securely.
  • Works well for confined spaces.
  • All advantages of Flat Web slings & Round slings.
  • Extra Sleeves cab be added to body easily.
  • Adapts to all sizes, types and load configurations.
  • Light weight and pliable for easy lifting and storage.
  • Colour coded for easy identification.
  • Available in safety factor 7:1 and 5:1.
  • Free overload tail indicator yarn and optical fiber.

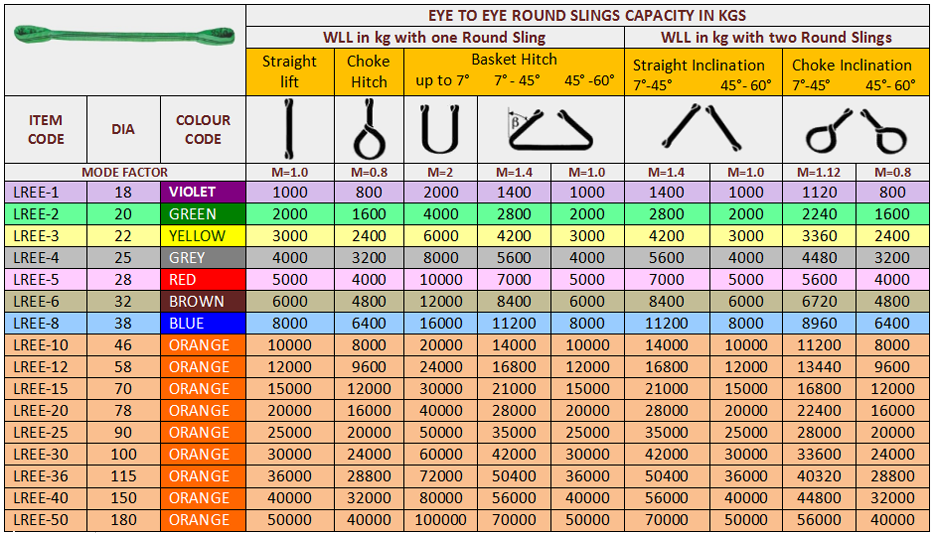

Round Eye And Eye Slings Table

Round Eye And Eye Slings4

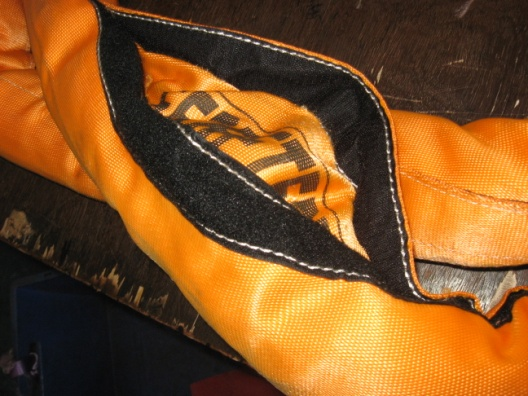

Use Anti-Abrasive, Anti-cut Sleeves to protect round slings from damage by sharp edges, we have wide range of protection sleeves (see Sling Protection).

Round Eye And Eye Slings5

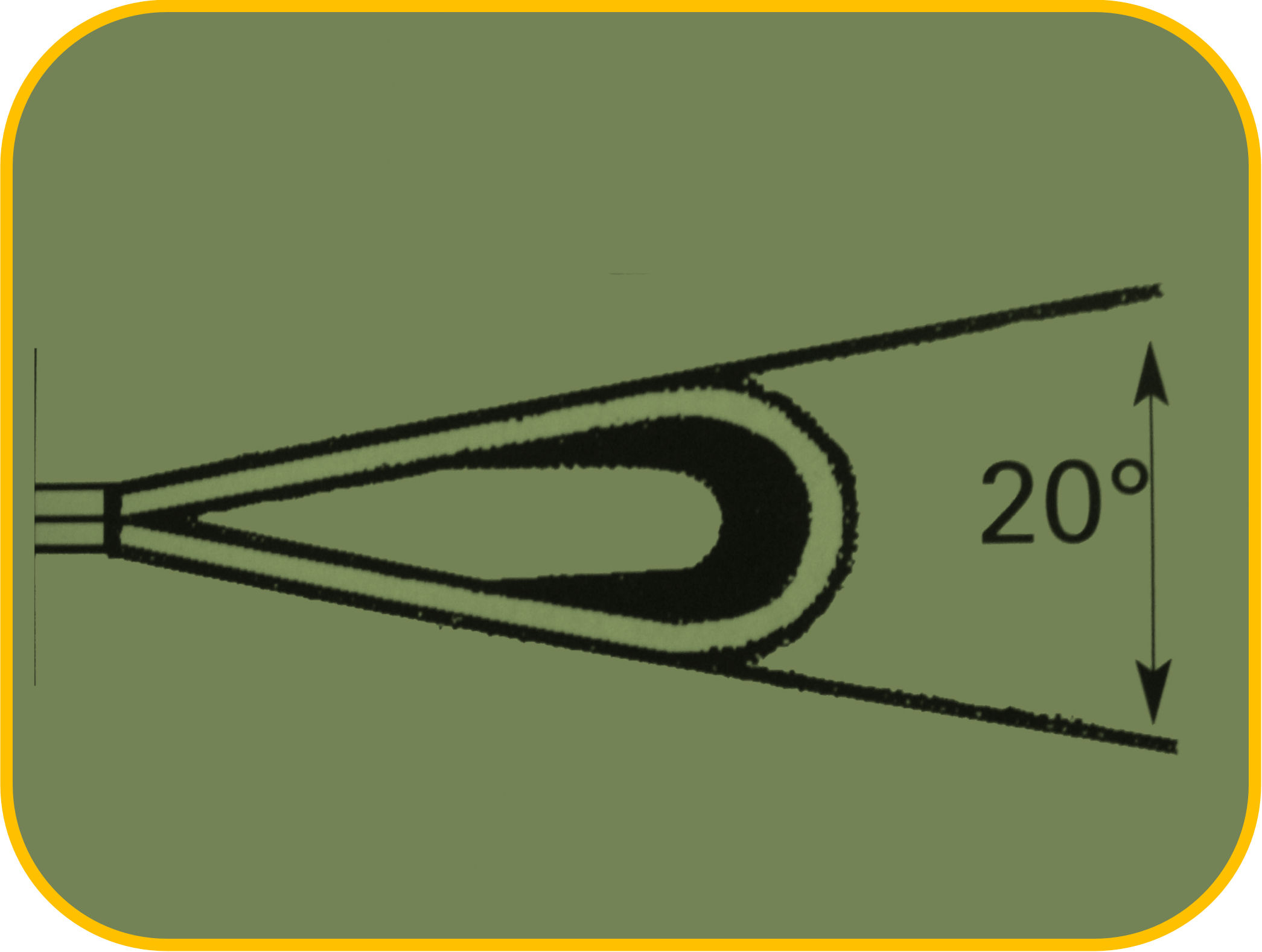

Aperture angles of eyes should not be more than 20°. It means length of the eye equals or exceeds four times the area of support of the lifting hook.

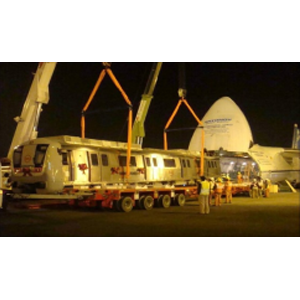

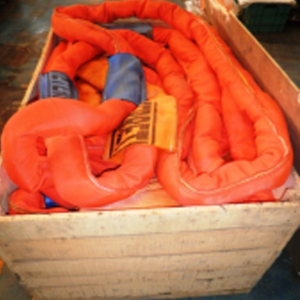

Extreme Round Slings

Extreme Round Slings

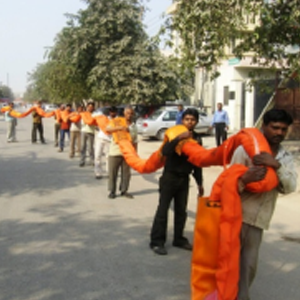

Extreme Round Slings1
Extreme Round Slings2

Features :

  • Soft, Supple & light weight, easy to handle.
  • High Weight to strength ratio.
  • Seamless cover, no edge to wear out.
  • Cover abrasion will not reduce the capacity.
  • Adapts to all sizes, types and load configurations.
  • Lightweight, easy to rig, store & clean.
  • Orange Colour coded.
  • Available in capacity 36 ton to 350 ton.
  • Available in endless & eye to eye types.

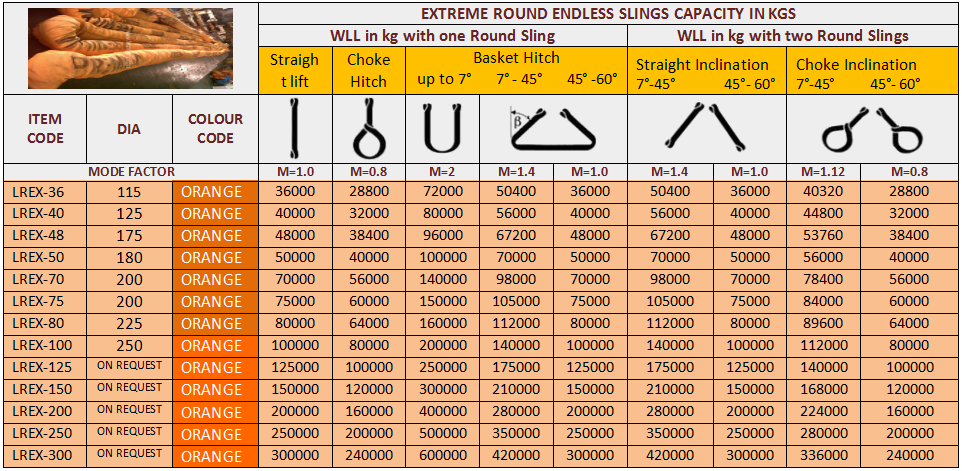

Extreme Round Slings Table

Twin Path Round Slings

Twin Path Round Slings
Twin Path Round Slings1
Twin Path Round Slings2

FERRETERRO Twin slings are available in Polyester/Dyneema® fibers by DSM load carrying fibers.

BACKUP PROTECTION
Twin slings are actually two complete and separate slings in one. Each path makes its own separate connection between the hook and the load and account for 50% of the total slings work load. The design we manufacture is non patented and is cost effective than other sling makers.

DOUBLE CORE (ON REQUEST)
The twin sling design provides the sling user with an early warning and inspection system. Also available in double core for extra abrasion resistance and long life. The load carrying yarn never come into contact with the load. When the protection outer cover is damaged, the inner cover provides extra protective sleeve for usage.

ELONGATION STRING (FREE)
We provides all our round slings, and TWIN sling as well with Elongation string to know whether the sling has elongated and when the string disappears sling should be discarded.

FIBER-OPTIC INSPECTION (FREE)
Fiber optic inspection cables assist the sling user and inspector to evaluate the condition of the load carrying yarns. The condition of internal load carrying yarn can be inspected by checking the conductivity of the fiber optic cable. If the load carrying yarn have suffered chemical, heat or crushing damage, the fiber optic will lose its ability to transmit light from one end to the other, giving the inspector a reason to remove the sling from service and return it for repair evaluation.


Twin Path Round Slings Table Twin Path Round Slings Table1
