Multileg Synthetic Slings

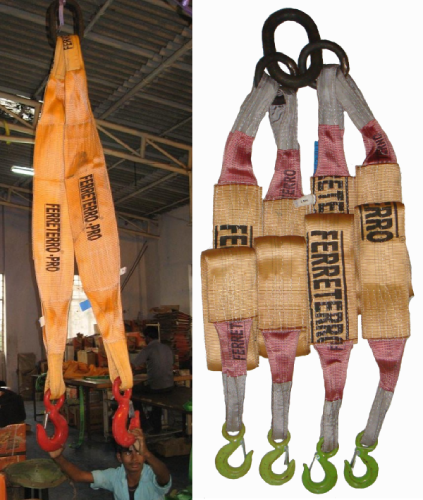

Multileg Webbing Slings



Multi leg Polyester slings are made of using Flat Webbing Slings Straps as per specific requirements depending upon uses and safe working loads. A set of multi leg slings includes Master link, Auxiliary links and different end fittings like Eye hooks, Swivel hooks, D-Shackles or Bow- Shackles, Rings as required. All these fittings are made of quenched and tempered alloy steel grade-80 material. Flat slings are stitched directly to the metal ring while Endless round slings are attached with connecting links. Anti-abrasive and Anti-cutting protection sleeves can be fitted as per specific requirements.


FEATURES:

  • Selection of flat webbing or round slings.
  • Choice of 2 leg, 3 leg and 4 leg types.
  • Available in customised lengths.
  • High strength to weight ratio.
  • Colour coded for identification.
  • Different end fittings available.
  • End fitting metal componants forged alloy steel.
  • Anti-abrasion sleeves and anti cutting slleves protection.
  • Conforms en-1492-1, en-1492-2 and asme b30.9

ADVANTAGE:

  • Better load control and balance. Bridle slings give fixed lifting points and choice of multiple legs.
  • Hardwares avoid wearing & cuts of slings at load bearing points.

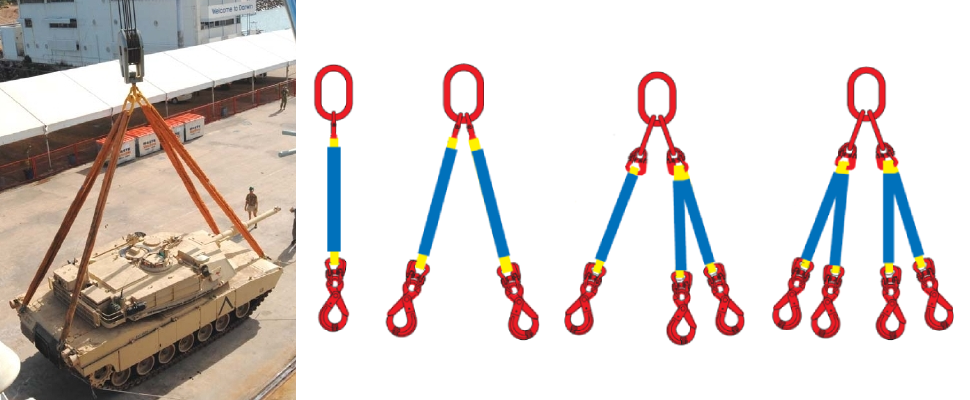

Multileg Round Slings


Multi leg Polyester round slings are made of using either endless round slings or round eye and eye slings as per specific requirements depending upon uses and safe working loads. A set of multi leg slings includes Master link, Auxiliary links and different end fittings like Eye hooks, Swivel hooks, D-Shackles or Bow- Shackles, Rings as required. All these fittings are made of quenched and tempered alloy steel grade-80 material. Flat slings are stitched directly to the metal ring while Endless round slings are attached with connecting links. Anti-abrasive and Anti-cutting protection sleeves can be fitted as per specific requirements.


FEATURES:

  • Selection of round slings endless type or eye and eye type.
  • Choice of 2 leg, 3 leg and 4 leg types.
  • Available in customised lengths.
  • High strength to weight ratio.
  • Colour coded for identification.
  • Different end fittings available.
  • End fitting metal componants forged alloy steel.
  • Anti-abrasion sleeves and anti cutting slleves protection.
  • Conforms en-1492-1, en-1492-2 and asme b30.9

ADVANTAGE:

  • Better load control and balance. Bridle slings give fixed lifting points and choice of multiple legs.
  • Hardwares avoid wearing & cuts of slings at load bearing points.
