Polyester Flat Webbing Slings

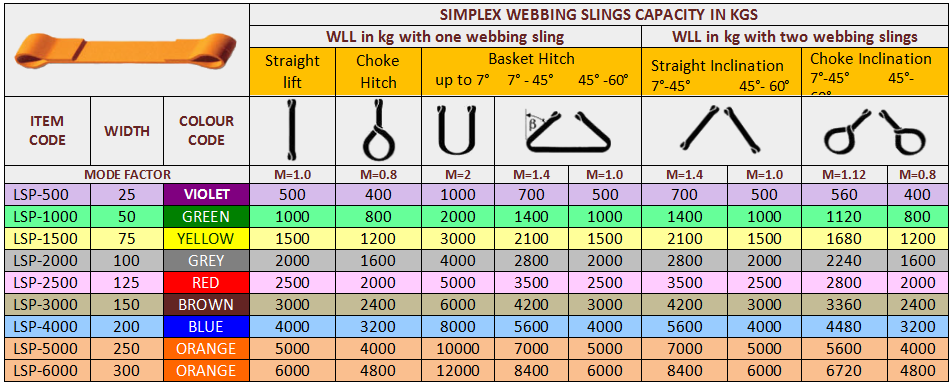

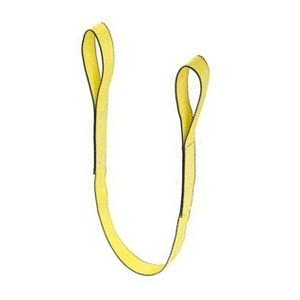

Simplex Flat Webbing Slings

Simplex Flat Webbing Slings

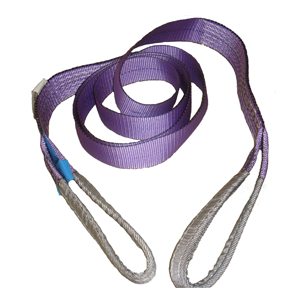

Simplex Flat Webbing Slings1

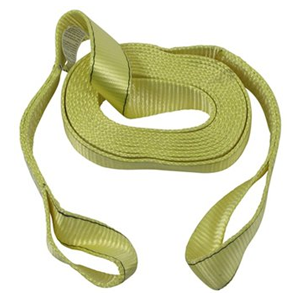

Simplex Flat Webbing Slings2

Features :

  • 100% High Tenacity Polyester.
  • Made of single thickness of Webbing.
  • Flat & wide load bearing surface.
  • According to EN-1492-1:2000.
  • ASME B 30.9 & IS:15041.
  • Safety Factor 7:1 and 5:1.
  • Low Elongation 3 – 7%.
  • High strength to weight ratio.
  • Available up to 300 mm width.
  • Colour coded for easy identification.
  • Maximum working temperature 90 °c.
  • Anti-abrasion sleeves and anti cutting sleeves protection (optional).

Simplex Flat Webbing Slings2

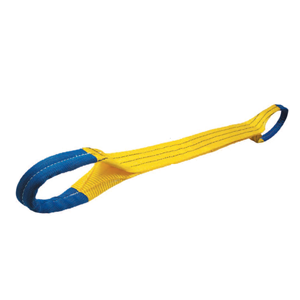

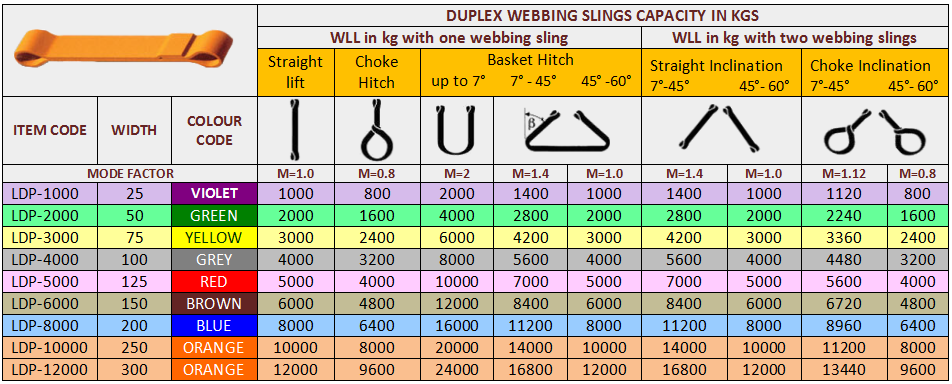

Duplex Flat Webbing Slings

Duplex Flat Webbing Slings
Duplex Flat Webbing Slings1

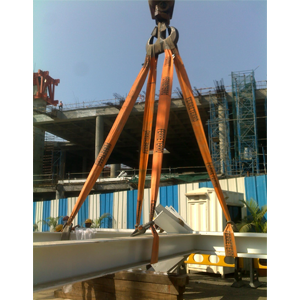

Duplex Flat Webbing Slings2

Features :

  • 100% High Tenacity Polyester.
  • Made of double thickness of Webbing.
  • Flat & wide load bearing surface.
  • According to EN-1492-1:2000 or ASME B 30.9 & IS:15041.
  • Safety Factor 7:1 and 5:1.
  • Low Stretch Factor: Elongation 3-7%.
  • High strength to weight ratio: Weight 80% less than Equivalent Wire or Chain slings.
  • Available up to 300 mm width & 12 Ton Capacity.
  • Colour coded for easy identification.
  • Maximum working temperature 90 °c.
  • Anti-abrasion sleeves and anti cutting sleeves protection (optional).

Duplex Flat Webbing Slings2

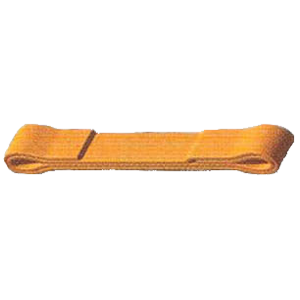

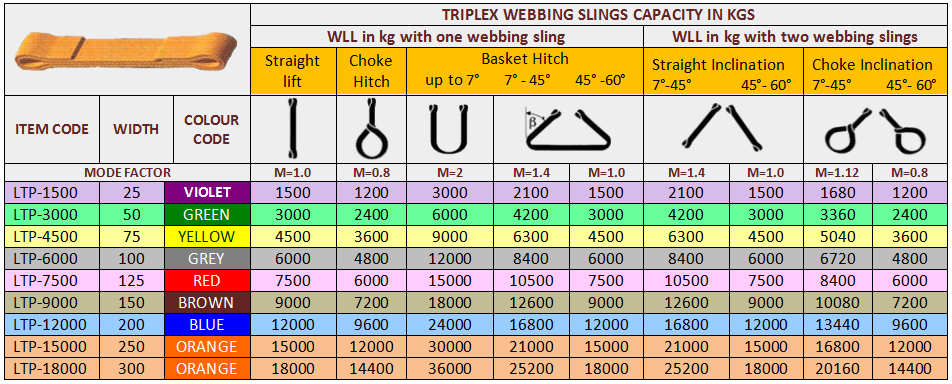

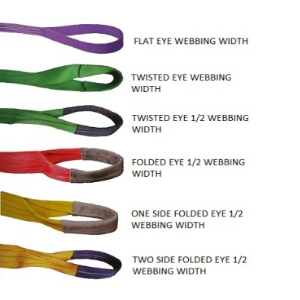

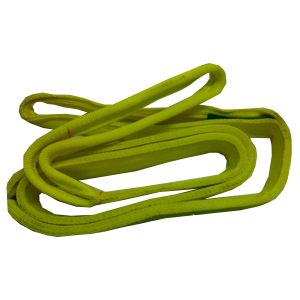

Triplex Flat Webbing Slings

Triplex Flat Webbing Slings
Triplex Flat Webbing Slings1
Triplex Flat Webbing Slings2

Features :

  • 100% High Tenacity Polyester.
  • Made of 3 Ply Webbing.
  • Flat & wide load bearing surface.
  • According to EN-1492-1:2000 or ASME B 30.9, IS:15041.
  • Safety Factor 7:1 and 5:1.
  • Low Stretch Factor: Elongation 3-7%.
  • High strength to weight ratio: Weight 80% less than Equivalent Wire or Chain slings.
  • Available up to 300 mm width & 18 Ton Capacity.
  • Colour coded for easy identification.
  • Maximum working temperature 90 °c.
  • Anti-abrasion sleeves and Anti- cutting sleeves protection (optional).

Triplex Flat Webbing Slings2

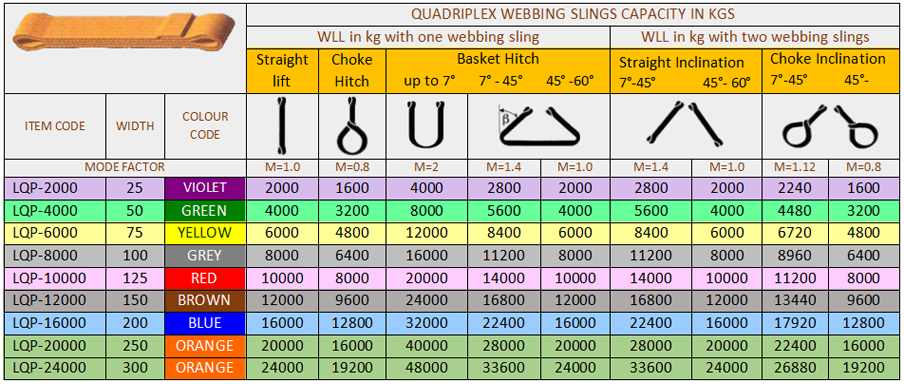

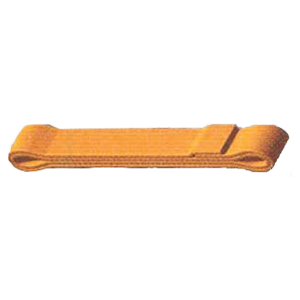

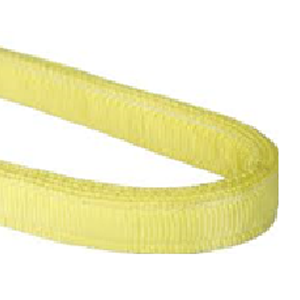

Quadruplex Flat Webbing Slings

Quadruplex Flat Webbing Slings
Quadruplex Flat Webbing Slings1

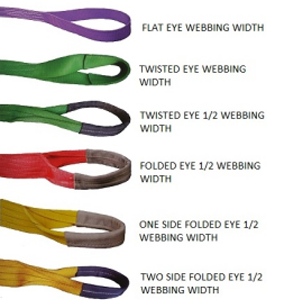

Quadruplex Flat Webbing Slings2

Features :

  • 100% High Tenacity Polyester.
  • Made of 4 Ply Webbing.
  • Flat & wide load bearing surface.
  • According to EN-1492-1:2000 or ASME B 30.9, IS:15041.
  • Safety Factor 7:1 and 5:1.
  • Low Stretch Factor: Elongation 3-7%.
  • High strength to weight ratio: Weight 80% less than Equivalent Wire or Chain slings.
  • Available up to 300 mm width & 24 Ton Capacity.
  • Colour coded for easy identification.
  • Maximum working temperature 90 °c.
  • Anti-abrasion sleeves and Anti- cutting sleeves protection (optional).

Quadruplex Flat Webbing Slings2

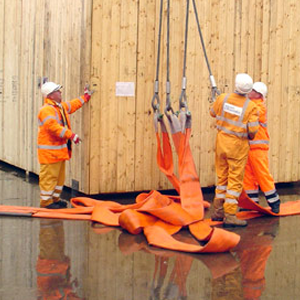

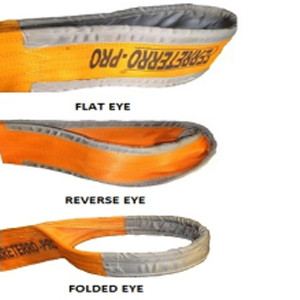

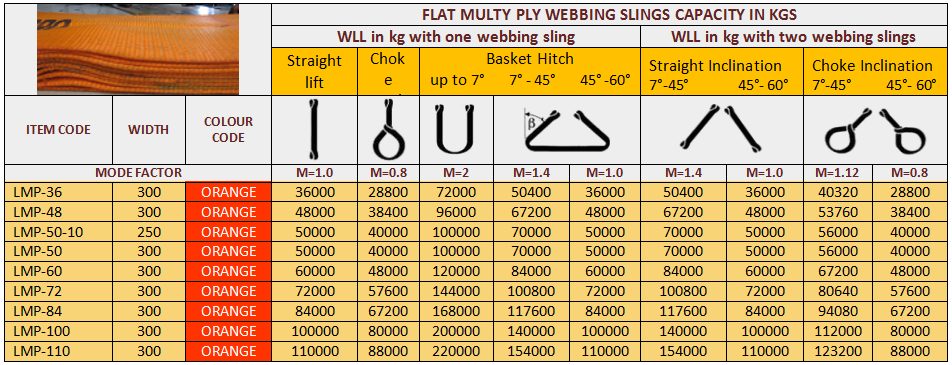

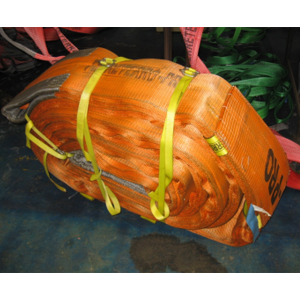

Multiply Flat Polyester Webbing Slings

Multiply Flat Polyester Webbing Slings
Multiply Flat Polyester Webbing Slings1
Multiply Flat Polyester Webbing Slings2

Features :

  • 100% High Tenacity Polyester.
  • Made of multi-layered Webbing.
  • Flat & wide load bearing surface.
  • According to EN-1492-1:2000 or ASME B 30.9.
  • Safety Factor 7:1 and 5:1.
  • Low Stretch Factor: Elongation 3-7%.
  • High strength to weight ratio.
  • Available up to 300 mm width & 110 Ton Capacity.
  • Colour coded for easy identification.
  • Maximum working temperature 90 °c.

Multiply Flat Polyester Webbing Slings

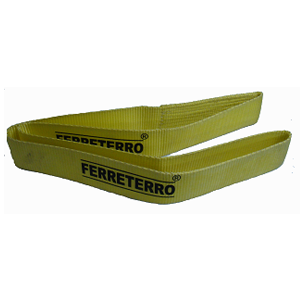

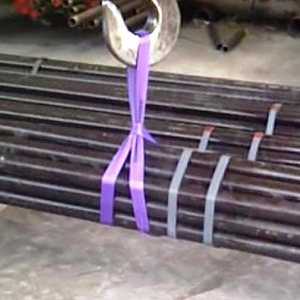

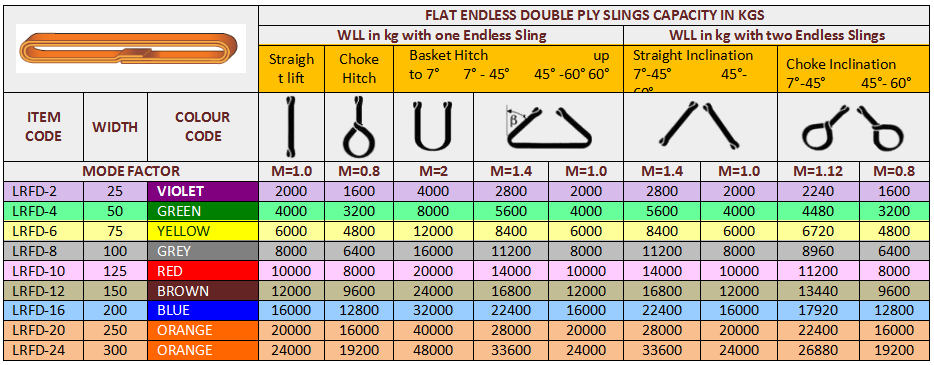

Flat Endless Polyester Webbing Slings

Endless Flat Slings are the most versatile of the entire web sling configuration. Endless Web slings can be used in all 3 types of hitches and perfectly suited for use with traverses in lifting or choking use. The wear points can be adjusted around the circumference of the sling to increase sling life. Compared to eye to eye slings, endless web slings are much simpler to sew and thus are highly economical lifting devices.


Flat Endless Polyester Webbing Slings
Flat Endless Polyester Webbing Slings1

Features :

  • 100% High Tenacity Polyester.
  • Made of Double thickness of Webbing.
  • Flat & wide load bearing surface.
  • According to EN-1492-1:2000 or ASME B 30.9.
  • Safety Factor 7:1 and 5:1.
  • Low Stretch Factor: Elongation 3-7%.
  • High strength to weight ratio.
  • Available up to 300 mm width & 12 Ton Capacity in.
  • Single layer & 24 ton in double layer.
  • Colour coded for easy identification.
  • Maximum working temperature 90 °c.

Advantages :

  • Easy handling in choking use.
  • Loads are always carried by two strands.
  • Higher load capacity compare to web slings of equal width.
  • Highly cost efficient.
  • Ideal for pre-Slung pre-Slung techniques.
  • Available in simplex or duplex configuration.
