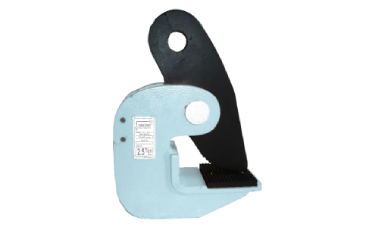

Horizontal Plate Lifting Clamp For Extra Hard Sheet

Horizontal Plate Lifting Clamp
plate & pipe lifting clamps

Normally horizontal clamps are designed to lift and transport steel plates in the horizontal position up to a hardness of 30HRCproviding the plate can withstand the forces imposed but such kind of plate clamp is used for lifting extra hard sheet. Caution should be used so that maximum angle is not exceeded, and horizontal lifting clamps must always be used in pairs.

  • Available in capacities up to 30 metric tons (in pair).
  • Handles plates up to 170 mm thick.
  • Individual clamp is proof tested with 2 times the load of working load limit.
  • Can lift extra hard plates.
