Universal Vertical Plate Lifting Clamps


Universal Vertical Plate Lifting Clamps

Features

  • Available in capacities of 1, 2, 3, 5, 8, 10 and 12 tons.
  • Jaw opening ranges from 0 to 90mm.
  • Material is M.S and high strength steel wherever required.
  • Individual clamp is proof tested with 2 times the WLL.

Things to Remember

  • Weight of plate to lift.
  • Hardness of plate to lift.
  • Type of material to lift.
  • Position of plate to lift.

Dont’s

  • DO NOT lift plates with a temperature of 120°C.
  • DO NOT use to lift stainless steel, lead and copper.

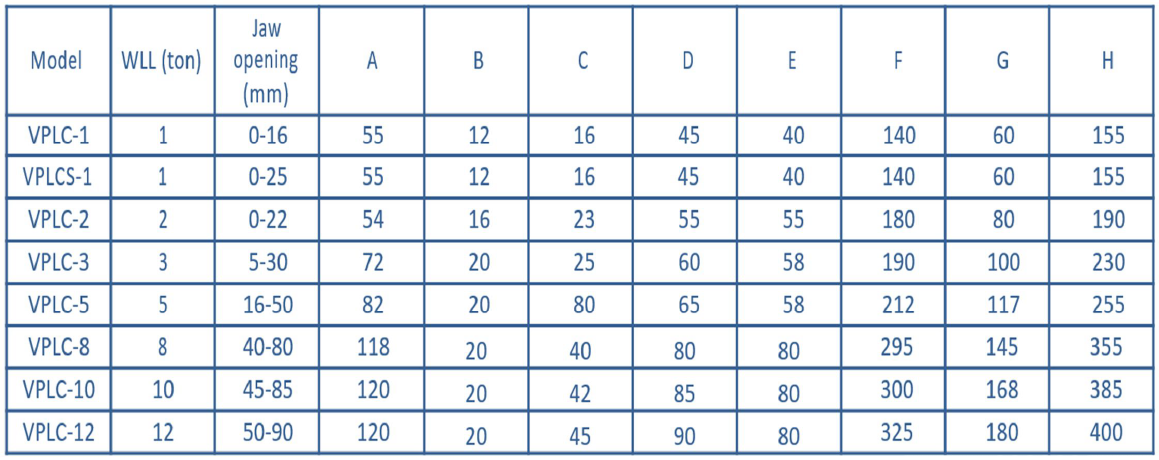

Universal Vertical Plate Lifting Clamps Chart
