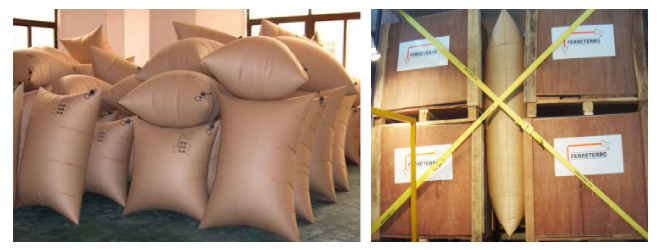

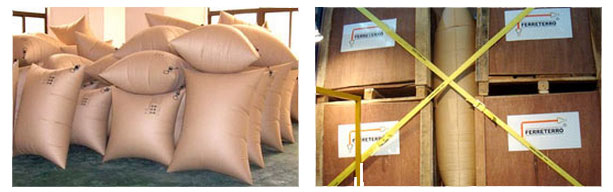

Dunnage Bags

Dunnage bags, also known as airbags are convenient, fast and cost effective alternative to secure and stabilize cargo in ISO sea containers, closed rail cars, trucks and on-going vessels. They are placed in the void between the cargo items. The use of dunnage bag can have a positive impact on road safety. According to European Commission Transportation Department “It has been estimated that up to 25% accidents involving trucks can be attributable to inadequate cargo securing”

Dunnage bags are very easy to work with. They inflate rapidly with the use of an inflator using compressed air. Dunnage bags are very safe to use for both the shipping and receiving end of the transportation. They are waterproof. The cushions are easy to install and are inflated by compressed air often by means of an outlet in the truck’s compressed air system or compressors.

FEATURES:

• Load restraint using air pressure.
• Effective and safe control of loads whilst transportation.
• Extremely quick and efficient holding and release of load thus saving time.
• No damage to the load being inflated.
• Lower weight means lower transport cost.
• Suppleness of air accommodates irregularities of load. Acts as a shock absorber in load shifting.
• After inflating, no load movement during transportation, safety, saving light, easy to use and no damage to the cargo

Types of Dunnage Bags

PAPER DUNNAGE BAG: The paper used on the outside of the bag is laminated on the inside with a woven polypropylene layer, which allows higher resistance to punctures and moisture. These inflatable dunnage air bags are designed for securing cargo in trucks & containers.

WOVEN POLYPROPYLENE DUNNAGE BAG: Woven polypropylene bags are made from inside LDPE liner and woven polypropylene outside. These inflatable dunnage air bags can be used in trucks, containers, railcars & ships.

POLYPROPYLENE LAMINATED DUNNAGE BAG: PP Laminated bags are made from inside LDPE liner and woven polypropylene coated with polyethylene outside.

SPECIFICATIONS:

• Dunnage bag (Ferreterro Brand).
• In PP Laminated Dunnage Bags, Top layer with Polyethylene coated, Inner layer LDPE Thickness 125 micron.
• Reinforced 6-layer structure (inner high barrier high strength LDPE) with excellent air tightness in PAPER Dunnage Bags.
• Load Bearing Capacity of Paper Dunnage Bag is Upto7 Tons. (For Any Size)
• Load Bearing Capacity of PP Dunnage Bag is Up to 5 Tons. (For Any Size)
• Variable sizes in PP as well as Paper also.
• In PAPER Dunnage Bags, Top layer with PP coated, Inner layer LDPE Thickness 125 micron.
• Reinforced 4-layer structure (inner high barrier high strength LDPE) with excellent air tightness in PP Dunnage Bags.
• Reinforced 6-layer structure (inner high barrier high strength LDPE) with excellent air tightness in PP Laminated Dunnage Bags.
• Reusable and recyclable to save resources.
• In PP Dunnage Bags, Top layer PP Level 1, Inner layer LDPE Thickness 125 micron.
• It remains flat before inflation, requiring minimal storage and transportation space.
• Fast inflation process to save loading time and reduce transportation cost.
