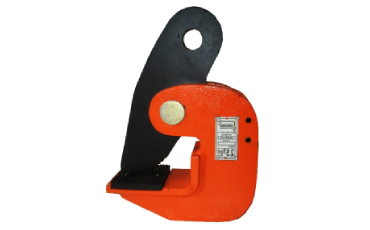

Horizontal Plate Lifting Clamp with Spring Loaded



Horizontal clamps are designed to lift and transport steel plates in the horizontal position up to a hardness of 30 HRC providing the plate can withstand the forces imposed. Caution should be used so that maximum single angle is not exceeded, and horizontal lifting clamps must always be used in pairs.


  • Available in capacities up to16 tons (in pair).
  • Handles plates up to 120mm thick.
  • Should not exceed 30 HRC.
  • A spring is incorporated into the clamp for initial bite.

Dont’s

  • DO NOT use single clamp.
  • DO NOT exceed 60°C angle when lifting.
  • DO NOT lift plates with a temperature of 120°C.
