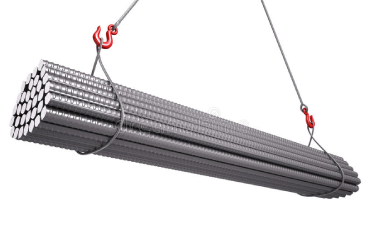

Two Legged Wire Rope Slings

Two Legged Wire Rope Slings


We manufacture legged wire rope slings, two legged wire rope slings made of tested quality wire ropes as per IS specifications with different end fittings attachments for various lifting purpose. We are capable to make these legged wire rope slings as per customer’s specific requirements of lifting. All slings are as per IS: 2762-1982 and can be supplied in various working load limits (WLL). Splicing of slings are as per IS: 5245 (Part-II). Slings are available with oblong ring and round ring at top.

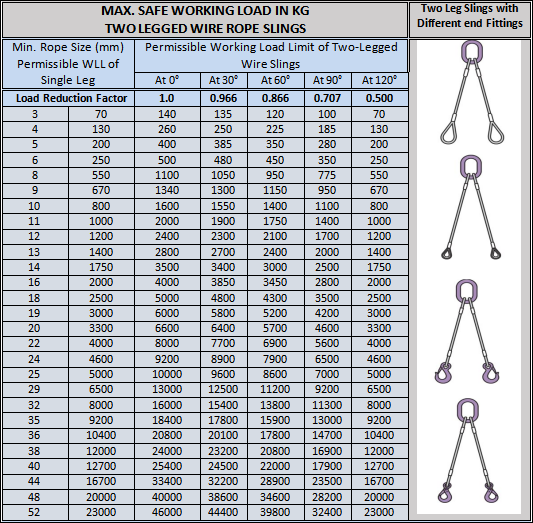

MAX. SAFE WORKING LOAD IN KG TWO LEGGED WIRE ROPE SLINGS
MIN. ROPE SIZE (MM) PERMISSIBLE WLL OF SINGLE LEG PERMISSIBLE WORKING LOAD LIMIT OF TWO LEGGED WIRE SLINGS
AT 0° AT 30° AT 60° AT 90° AT 120°
LOAD REDUCTION FACTOR 1.0 0.966 0.866 0.707 0.500
3 70 140 135 120 100 70
4 130 260 250 225 185 130
5 200 400 385 350 280 200
6 250 500 480 450 350 250
8 550 1100 1050 950 775 550
9 670 1340 1300 1150 950 670
10 800 1600 1550 1400 1100 800
11 1000 2000 1900 1750 1400 1000
12 1200 2400 2300 2100 1700 1200
13 1400 2800 2700 2400 2000 1400
14 1750 3500 3400 3000 2500 1750
16 2000 4000 3850 3450 2800 2000
18 2500 5000 4800 4300 3500 2500
19 3000 6000 5800 5200 4200 3000
20 3300 6600 6400 5700 4600 3300
22 4000 8000 7700 6900 5600 4000
24 4600 9200 8900 7900 6500 4600
25 5000 10000 9600 8600 7000 5000
29 6500 13000 12500 11200 9200 6500
32 8000 16000 15400 13800 11300 8000
35 9200 18400 17800 15900 13000 9200
36 10400 20800 20100 17800 14700 10400
38 12000 24000 23200 20800 16900 12000
40 12700 25400 24500 22000 17900 12700
44 16700 33400 32200 28900 23500 16700
48 20000 40000 38600 34600 28200 20000
52 23000 46000 44400 39800 32400 23000
